Technical data
Max reach (m) | 4.1 | 5.0 | 4.3 | 5.5 | 6.7 | 7.0 | 7.2 | 7.6 | 8.5 | 9.5 |
Lifting torque gross (kNm) | 12 | 23 | 27 | 27 | 39 | 50 | 60 | 86 | 60 | 86 |
Lifting capacity at 3,5 m w/o rotator and grapple (kg) | 280 | 550 | 660 | 618 | 870 | 1120 | 1339 | 1871 | 1224 | 1536 |
Lifting capacity at full reach w/o rotator and grapple (kg) | 180 | 382 | 538 | 390 | 451 | 560 | 651 | 861 | 504 | 566 |
Slewing torque (kNm) | 2 or 4 | 6.3 | 7.8 | 7.8 | 12 | 15 | 17 | 21.5 | 17 | 21.5 |

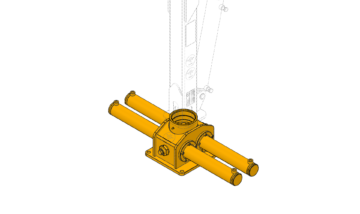

Slewing sylinders (pcs) | 2 or 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
Slewing angle | 360 | 370 | 370 | 370 | 380 | 380 | 380 | 380 | 380 | 380 |
Rotator max axial load (kN) | 10 | 30 | 30 | 30 | 30 | 45 | 45 | 55 | 45 | 55 |
Telescope extension (pcs) | 1 | 1 | – | 1 | 1 | 1 | 1 | 1 | 2 | 2 |
Telescopic boom stroke lenght (m) | 0.9 | 1.1 | – | 1.3 | 1.7 | 1.8 | 1.9 | 1.9 | 3.6 | 4.2 |
Working pressure (bar) | 175 | 180 | 180 | 180 | 190 | 190 | 200 | 200 | 200 | 200 |
Crane`s weight without support legs and valve block (kg) | 167 | 315 | 335 | 375 | 565 | 690 | 780 | 1180 | 857 | 1318 |
Reccommended oil pump capacity (l/min) | 5-15 | 15-30 | 20-35 | 20-35 | 30-45 | 40-55 | 50-65 | 60-100 | 50-65 | 60-100 |
Support legs type | FD | A or FD | FD | FD | A or FD | A or FD | A or FD | FD Pro | A or FD Pro | FD Pro |
A type (telescopic) support legs weight (kg) | – | 92 | – | – | 319 | 319 | 319 | – | 319 | – |
FD type SMART (flap down) support legs weight (kg) | 60 | 91 | – | – | – | – | – | – | – | – |
FD type MASTER (flap down) support legs weight (kg) | – | – | 135 | 135 | 338 | 338 | – | – | – | – |
FD type PRO (flap down) support legs weight (kg) | – | – | – | – | 420 | 420 | 420 | 420 | 420 | 420 |
Reccommended grapple | 0.08 | 0.12, 0.15 Pro | 0.12, 0.15 Pro, 0.17 | 0.12, 0.15 Pro, 0.17 | 0.17, 0.19 Pro, 0.22, 0.23 Pro | 0.19 Pro, 0.22, 0.23 Pro, 0.27 Pro | 0.19 Pro, 0.22, 0.23 Pro, 0.27 Pro | 0.22, 0.23 Pro, 0.27 Pro | 0.22, 0.23 Pro, 0.27 Pro | 0.22, 0.23 Pro, 0.27 Pro |
X | X | ||||||||||
X | X | X | |||||||||
X | X | X | |||||||||
X | X | X | |||||||||
X | X | X | |||||||||
X | X | X | X | ||||||||
X | X | X | X | ||||||||
X | X | X | X | ||||||||
X | X | X | X | ||||||||
X | X | X | X | ||||||||
X | X | X | X | ||||||||
X | X | X | X | ||||||||
X | X | X | X | ||||||||
X | X | X | X | ||||||||
X | X | X | X | ||||||||
X | X | X | X | ||||||||
X | X | X | X | ||||||||
X | X | X | X | ||||||||
X | X | X | X | X | X | ||||||
X | X | X | X | ||||||||
X | X | X | X | X | X | ||||||
X | X | X | X | X | X | ||||||
X | X | X | X | X | X | ||||||
X | X | X | X | X | X | ||||||
X | X | X | X | X | X |
Reliability
COUNTRY trailers and cranes are made from high-quality special steel, ensuring a strong structure and lower dead weight. All solutions are tested in Nordic conditions – they are built to work in cold, mud and demanding terrain. The durable design and well-thought-out construction ensure the trailers last from generation to generation and retain a high resale value. The long-lasting powder coating effectively protects the structure against corrosion, and the hydraulic hoses are concealed to protect them from mechanical damage. All trailers meet European Union type-approval requirements, ensuring safety and reliability in every working situation.
Efficiency
COUNTRY trailers and cranes are designed to achieve maximum productivity in every situation. A low centre of gravity and stable support legs ensure safe and secure work even on difficult terrain. Good manoeuvrability makes it possible to work in tight and hard-to-reach conditions. A wide range of professional control valves ensures smooth, fast and precise work with excellent ease of use. Low running costs and the option to add retrofittable accessories make the solution flexible and cost-effective. All of this is combined with a simple and convenient user experience, so the work gets done faster and with less effort.
Versatility
COUNTRY trailers and cranes are designed with the needs of different users in mind – suitable for forestry workers, farmers, municipal operators and arborists alike. Thanks to the wide range of accessories, a forestry trailer or crane can easily be adapted for farm work too, whether transporting hay bales or cleaning ditches. In addition, the crane can be mounted on other equipment such as chippers, significantly increasing the range of uses and flexibility in different working situations. This versatility makes it possible to cover several fields of work with a single investment and reduce the need for separate machines.
Submit an inquiry
We are here to help you find exactly the product from Country's high-quality range that best fits your needs!
Send us an inquiry describing the product configuration and accessories you need. Within just a few days we will put together a suitable setup based on the information received and prepare an initial price offer.
For more urgent questions, you can call Mon–Fri between 8:00 and 16:30 on the Country Estonia office number +372 505 6120

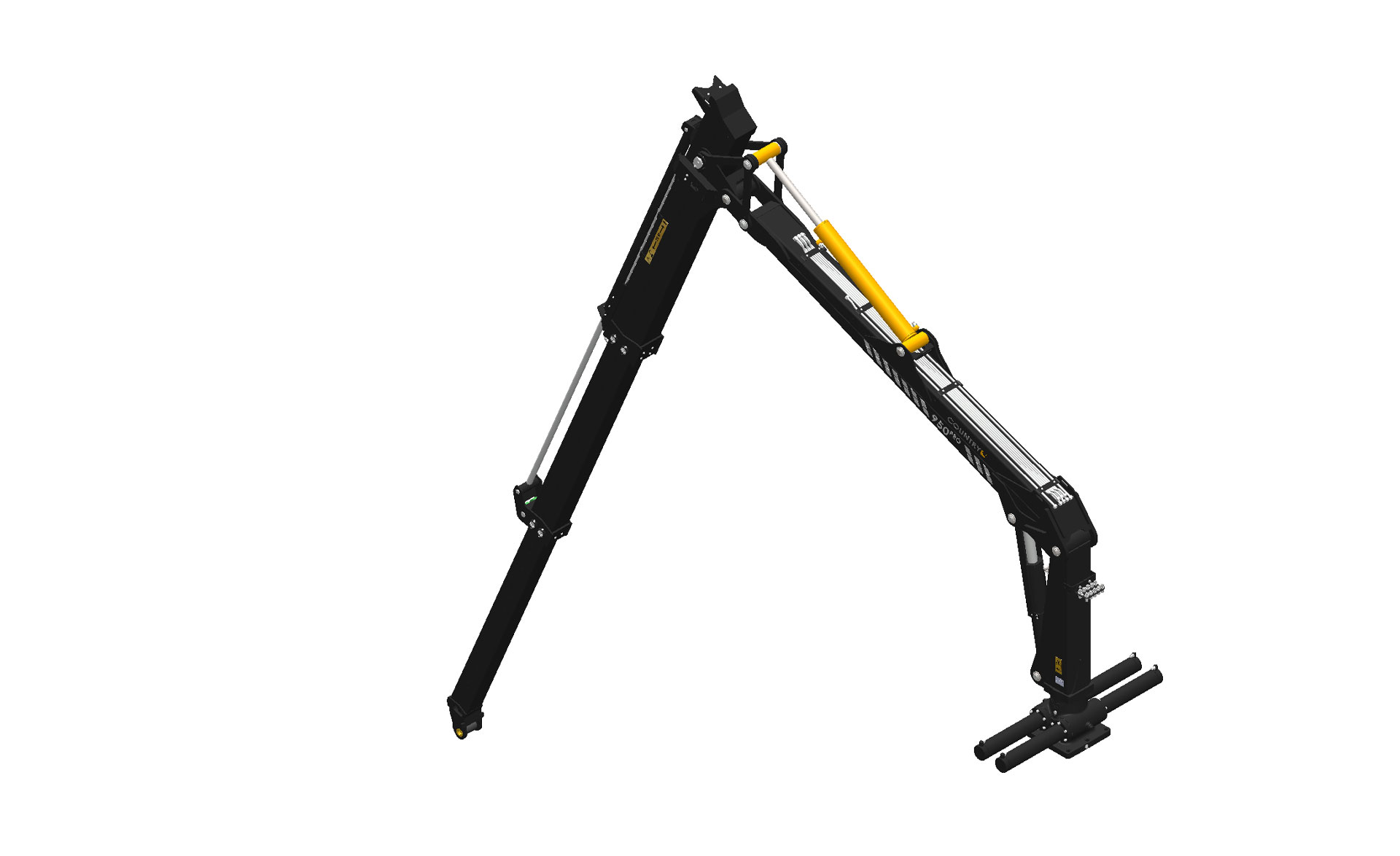

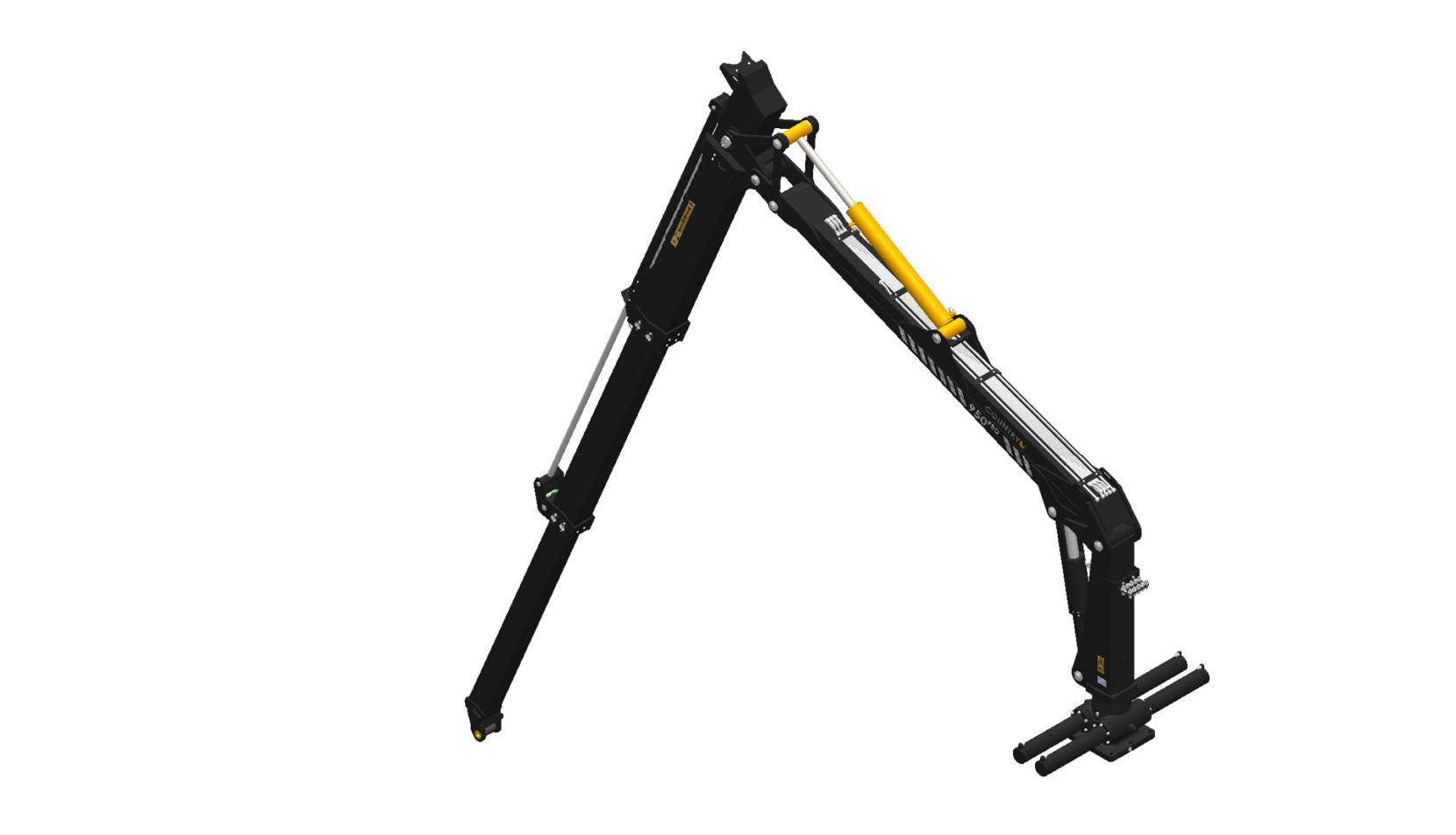

950 Pro
Choose a matching trailer
