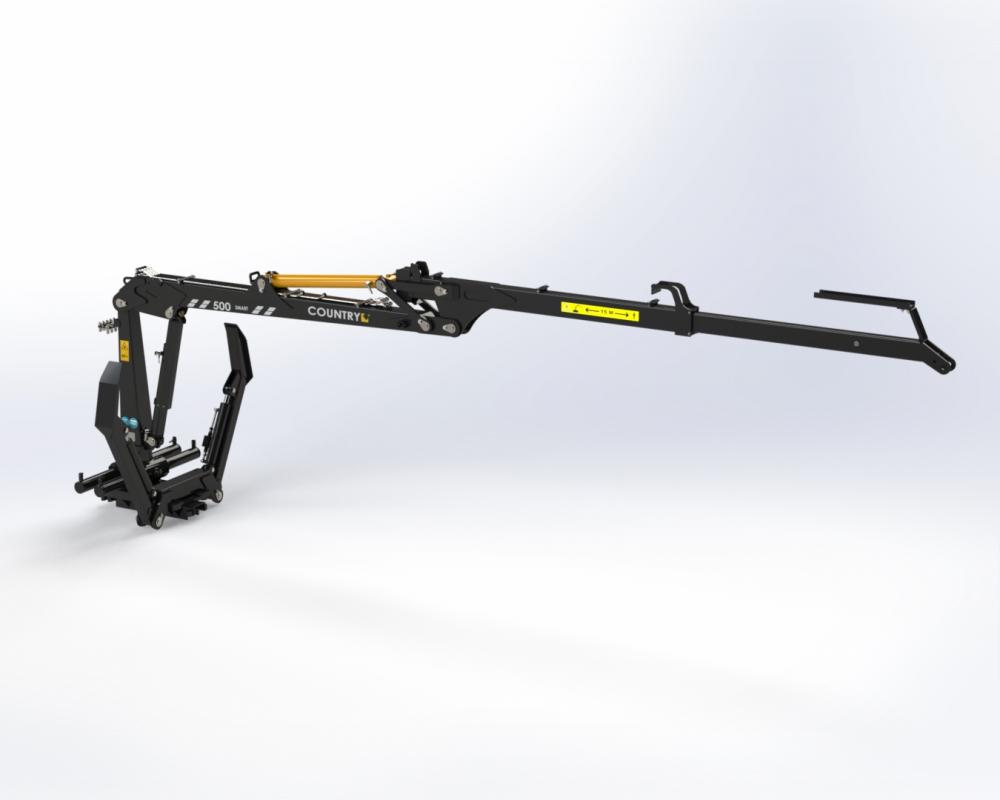

Tõstuk Country 500 SMART



  500 SMART
Max reach (m) 5.0
Lifting torque gross (kNm) 23
Lifting capacity at 3,5 m (kg) 550
Lifting capacity at full reach (kg) 382
Slewing torque (kNm) 6.3
Slewing cylinders (pcs) 4
Slewing angle 370
Rotator max axial load (kN) 30
Telescopic boom stroke length (m) 1.1
Working pressure (bar) 180
Crane's weight without support legs and valve block (kg) 315
Recommended pump capacity (l/min) 15-30
Support legs type A or FD
A type (telescopic) support legs weight, kg 92
FD type (flap down) support legs weight, kg 91
Recommended grapple size (m2) 0.12
Tõstuk Country 500 SMART
