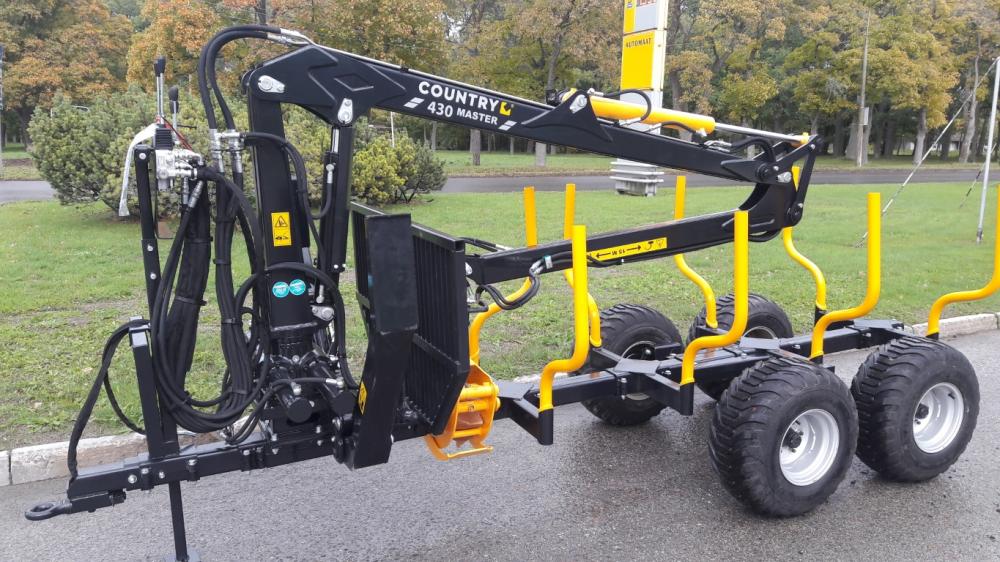

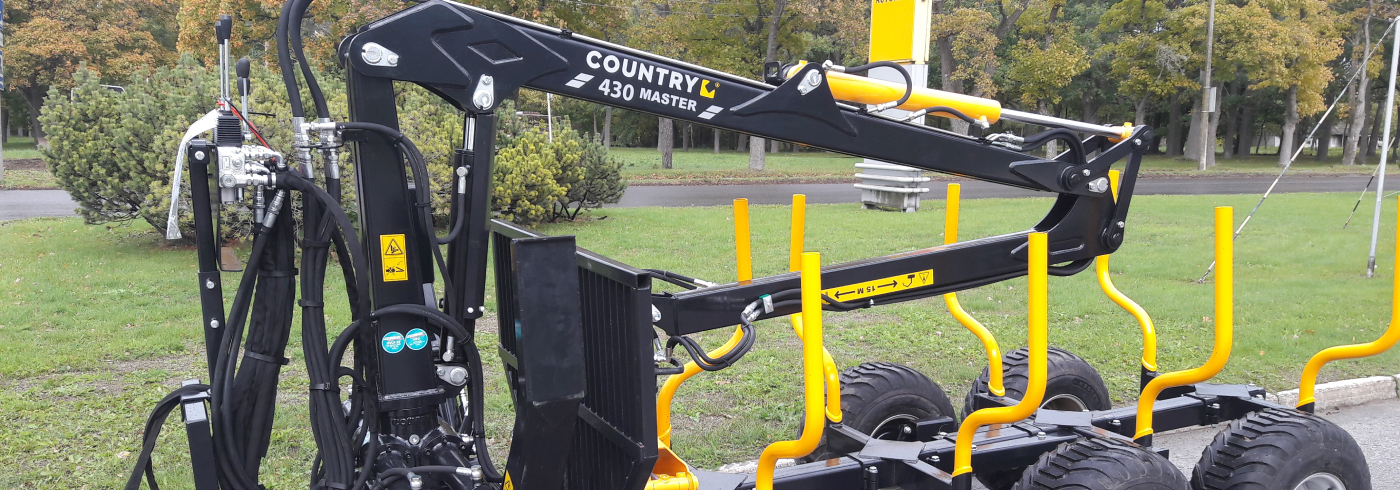

430 Master |
| Max reach (m) |
4.3 |
| Lifting torque gross (kNm) |
27 |
| Lifting capacity at 3,5 m (kg) |
660 |
| Lifting capacity at full reach (kg) |
538 |
| Slewing torque (kNm) |
7.8 |
| Slewing cylinders (pcs) |
4 |
| Slewing angle |
370 |
| Rotator max axial load (kN) |
30 |
| Telescopic boom stroke length (m) |
- |
| Working pressure (bar) |
180 |
| Crane's weight without support legs and valve block (kg) |
335 |
| Recommended pump capacity (l/min) |
20-35 |
| Support legs type |
FD |
| A type (telescopic) support legs weight, kg |
- |
| FD type (flap down) support legs weight, kg |
135 |
| Recommended grapple size (m2) |
0.12 or 0.17 |
